Tube Cold Process Portable Pipe Beveling Machine Electric Driven 1600W Motor Power

Name: Tube Cold Process Portable Pipe Beveling Machine Electric Driven 1600W Motor Power
Brand: Wellnit
Price: 1 USD

Buy cheap Tube Cold Process Portable Pipe Beveling Machine Electric Driven 1600W Motor Power product

Brand Name : Wellnit

Model Number : ISM-630-2

Certification : ISO9001

Place of Origin : China

MOQ : Negotiable

Payment Terms : T/T

Supply Ability : 50 sets for a mounth

Delivery Time : within 7 days after received 100% payment

Packaging Details : plywooden

Power Supply : 220-240V 50-60Hz

Driven : Electric

Thickness : Less than 75 (Standard)

Speed Rotation : 10r/min

Working WAY : No Spark,Cold Working

Fix way : Inside Mounted

Motor Power : 1600W

Working Range : 300-630mm(Inside Diameter)

Price : Negotiable

Contact Now

Tube Cold Process Portable Pipe Beveling Machine Electric Driven 1600W Motor Power

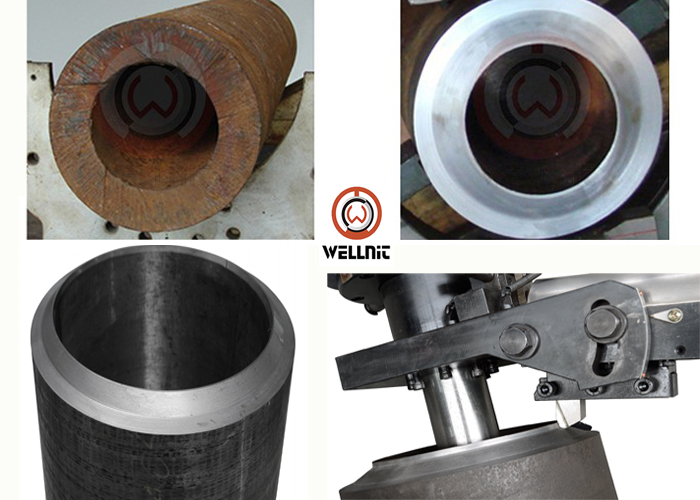

The ID-Mounted beveling operation utilizes an expandable mandrel which is slid into the open end of the pipe. A draw nut is tightened, which expands the mandrel blocks up a ramp and against the ID surface for positive mounting, self centered and squared to the bore. As the tool bit is fed into the material from the end, a bevel is produced which conforms to the angle predetermined by the angle ground into the bit. Bits are available for practically any material or beveling angle required, and bits can be custom made for any form tooling operation.

This series is ID Mounted Welding Preparation Pipe Chamfering Tool with the following advantages:

Lighter weight,minimal radial space,Easy to operate.
A draw nut is tighted,which expands the mandrel blocks up a ramp and against the ID surface for positive mounting,self centered and squared to the bore.
Driveing Type:Electric-ISE,Pneumatic-ISP.
Can Be Process Diffferent Material Pipe:Carbon Steel,Stainless Steel,Alloy And Ohers.
Angle:Beveling angle as per your required.

Technical Parameter

ISM-630-2 Beveling Machine
Voltage	220-240V
Frequency	50-60Hz
Power	1600W
Wall Thickness	≦75
Working Range	300-630mm
Rotation Speed	10r/min
Net Weight	120kg

Non-standard machines are available according to customers’requirement.
