High Efficiency Self Moving Plate Chamfering Machine Cold Working Automatic Feed

The characteristics of the milling machine

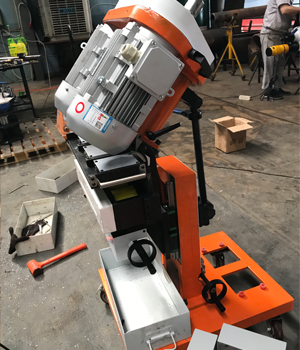

PB-80 automatic marching milling machine, as a substitute for planer, has the advantages of high

efficiency, high precision and low energy consumption. It is especially suitable for groove machining of

various shapes such as carbon steel, stainless steel and aluminum alloy. The general clamping thickness

is 6-60 mm, groove angle 0-60 degrees can be arbitrarily adjusted, dual motor, high power, faster

processing speed, higher efficiency.

Main performance of the product

1. The unique driving function.

2. Special equipment stable machining accuracy.

3. Special cutting of all kinds of metal materials

4, advanced cutting tools and long-term supply of

different blades.

Technical Parameter

Matters needing attention:

1. If the plate is cut by flame cutting machine or plasma cutting machine, it needs to be polished first,

because after cutting by flame cutting machine or plasma cutting machine, the surface of the plate will

produce welding slag, welding slag is very hard, if the machine chamfer is used directly, it will cause

damage to the tool and reduce the tool life.

2. If the iron chips are found to be purple in the process of machining, it means that the machine feeds too

much or the feeding speed is too fast, and the feed rate needs to be reduced or reduced.

3. When processing stainless steel plate, it is necessary to add coolant, which not only makes groove

surface smoother, but also reduces tool loss.
