Flat Chamfering Portable Plate Beveling Machine 2870r/Min Plate Milling Machine

Name: Flat Chamfering Portable Plate Beveling Machine 2870rMin Plate Milling Machine
Brand: Wellnit
Price: 1 USD

Buy cheap Flat Chamfering Portable Plate Beveling Machine 2870r/Min Plate Milling Machine product

Brand Name : Wellnit

Model Number : PBM-15

Certification : ISO9001

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Payment Terms : T/T,

Supply Ability : 100 set/week

Delivery Time : within 3days

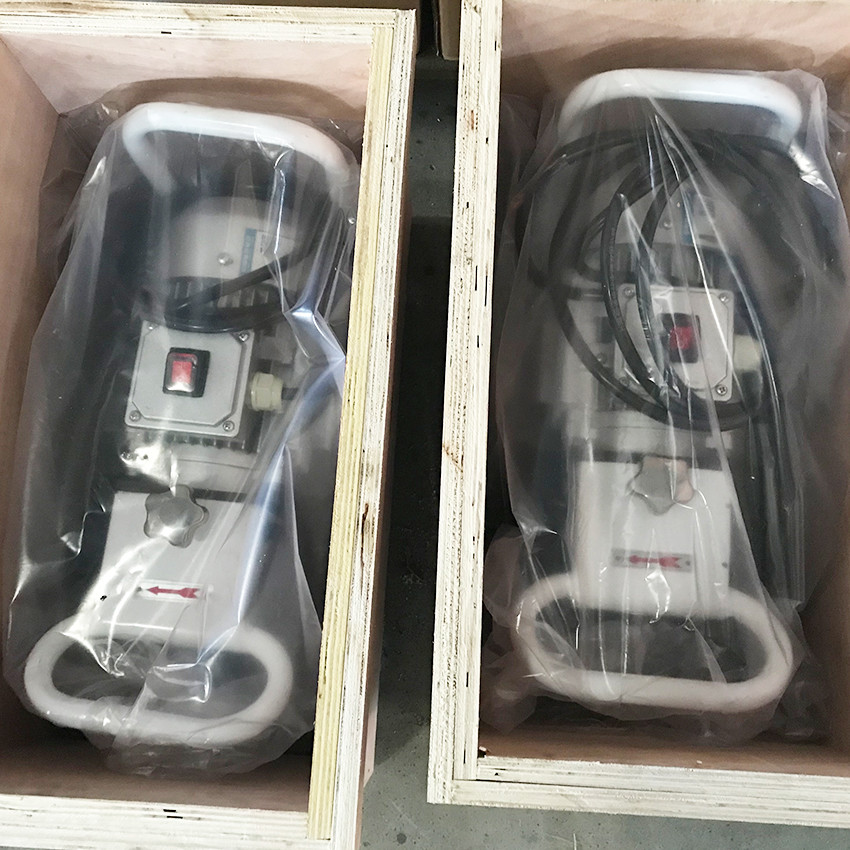

Packaging Details : Plywood Box

Voltage : 380V/220V

Rotating speed : 2870r/min

weight : 18KG

Warranty : 1 year

Frequency : 50HZ

power : 1.1KW

Contact Now

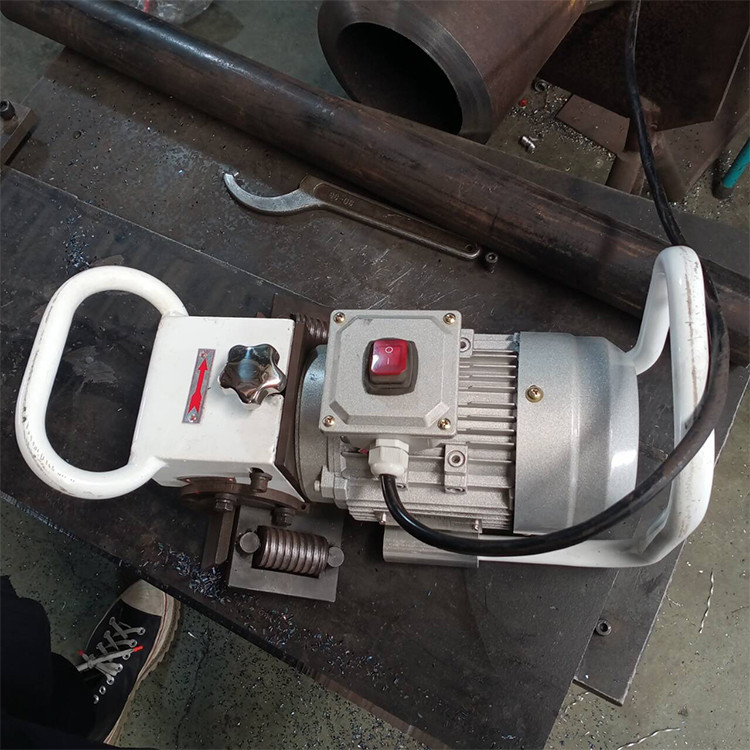

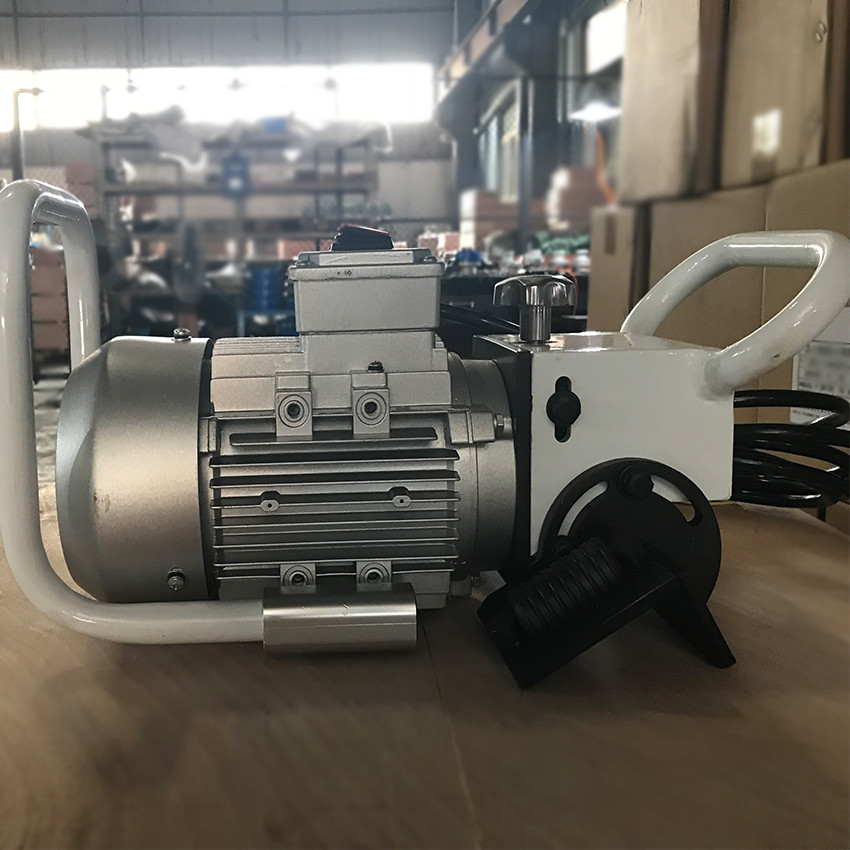

Hand-propelled portable plate beveling and chamfering machine

Product performance

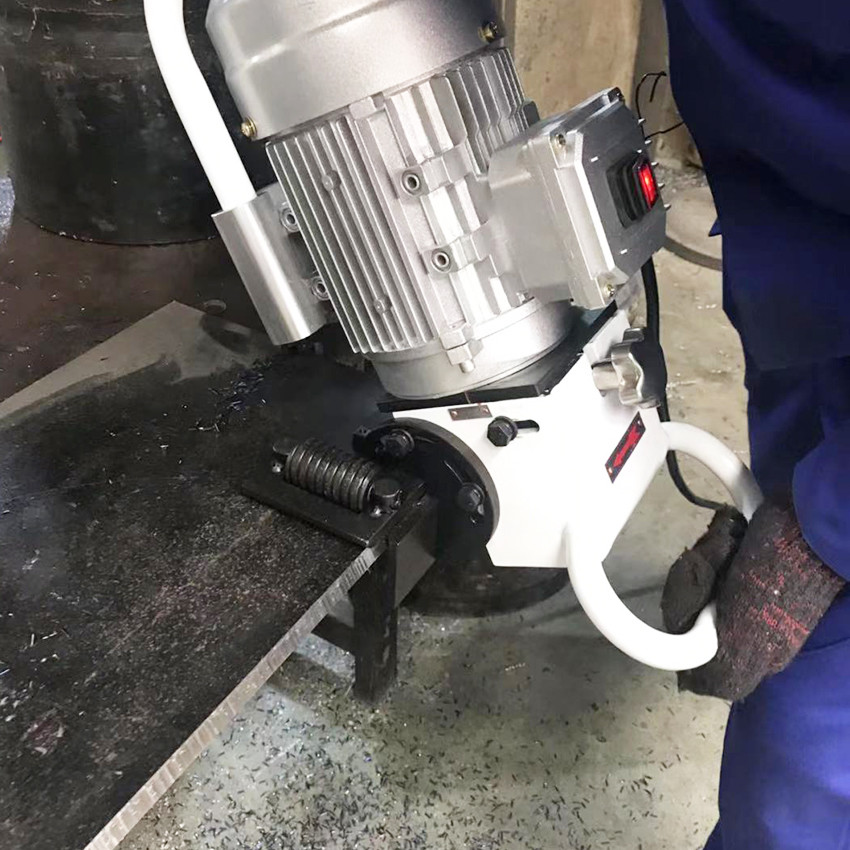

The plate beveling machine (PBM-15) is specially designed for the bevel chamfering of the plate. It is a manual propelling, bevel processing tool. It is suitable for chamfering and beveling various metal plates before welding. Bevel forms: K, V, Y, X, etc., with light weight, low vibration, easy operation, safe and reliable use. Milling processing, smooth slope, surface finish can be as high as Ra3.2-Ra6.3.

technical parameter

PBM-15 technical parameter
Maximum milling width	1-15mm (adjustable)
Milling Angle	30°-60° (adjustable)
Weight	18KG

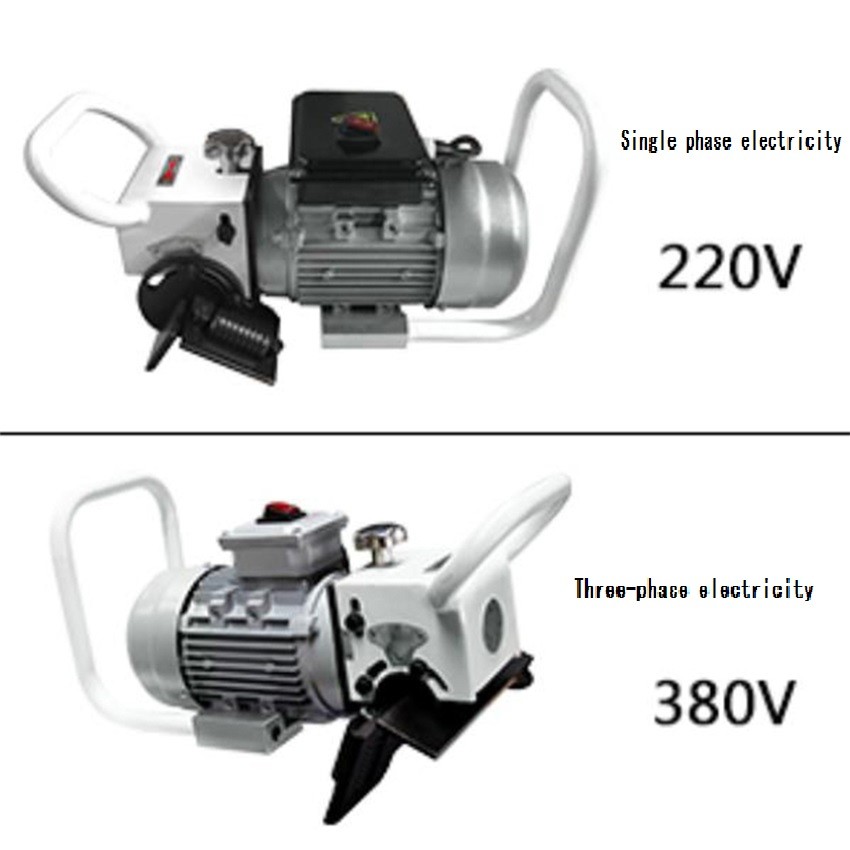

Voltage	380V(220V,1PH)
Frequency	50Hz
Power	1.1KW
Speed	2870r/min
