Automatic walking steel plate beveling machine stainless steel carbon steel milling machine flat plate cutting
Features
▲ Completely cold processed, no sparks, and will not affect the material
▲Automatic feed, automatic walking, high efficiency, one person can operate multiple equipment at the same time
▲Milling processing, smooth slope, surface finish can be as high as Ra3.2-Ra6.3
▲Numerical control display, simple operation, adjustable cutting speed, high precision
▲Equipped with CNC milling blades, CNC CNC blades, low consumables
▲Bevel form: V, Y, K, X type, etc.
▲It can process metal materials such as carbon steel, stainless steel, alloy steel, titanium, composite plates, etc.
Product parameter
| Supply voltage | AC 380V 50Hz |
| Total power | 3400W |
| Spindle speed | 1050r/min |
| Feed speed | 0-1500mm/min |
| Bevel width | 1-45mm |
| Single bevel width | 1-15mm |
| Bevel angle | 10°-60° |
| Clamping steel plate thickness | 6-40mm |
| Clamping steel plate width | ＞100mm |
| Clamping steel plate length | ＞300mm |
| Height of worktable | 820-860mm |
| Machine net weight | 250kg |
| Machinable material | Carbon steel, stainless steel, aluminum alloy, copper, composite board and other materials |
Product features
- No smoke sparks, no change to the processing material, to ensure the quality of welding flaw detection, the groove finish is as high as RA3.2, and it can be directly welded after processing.
- No manual assistance is required, and there will be no slippage during the beveling process, ensuring the consistency of the bevel surface.
- The bevel is smooth, and the finish is up to RA3.2.
- The thickness of the plate can reach 40mm, and the bevel width can reach 45mm after multiple beveling.
product details

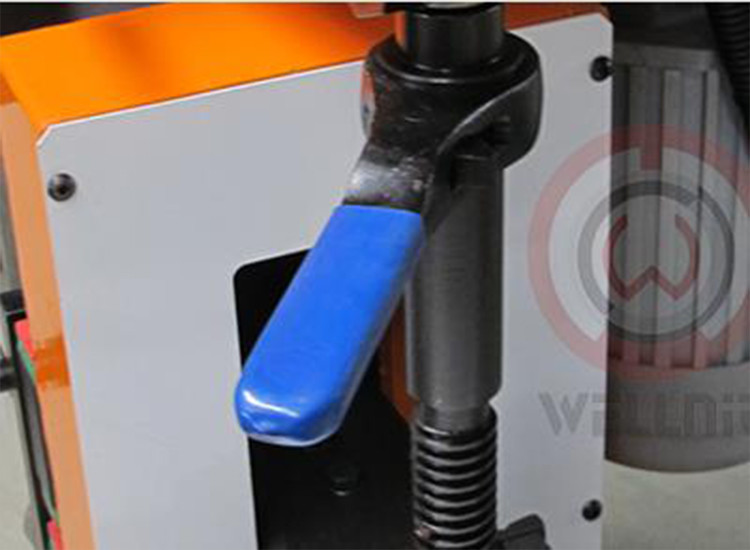

NO.1 Ratchet wrench
Ratchet wrench to adjust the angle, easy and convenient.

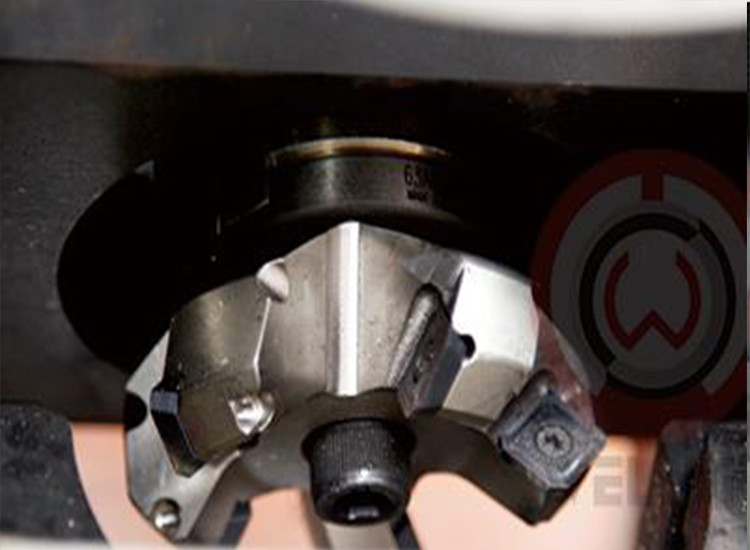

NO.2 CNC milling cutter
Using CNC milling cutter, high precision and high efficiency.

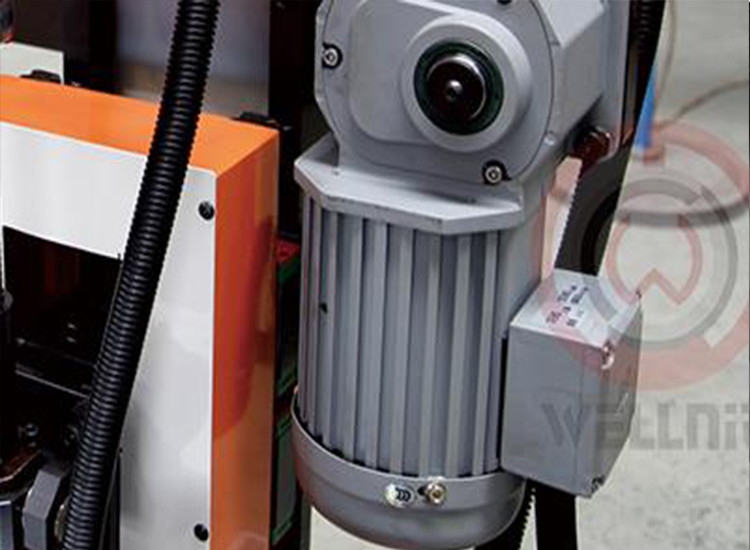

NO. 3 Reducer
Using high-efficiency gearbox instead of traditional worm gear and worm drive, the performance is more stable.

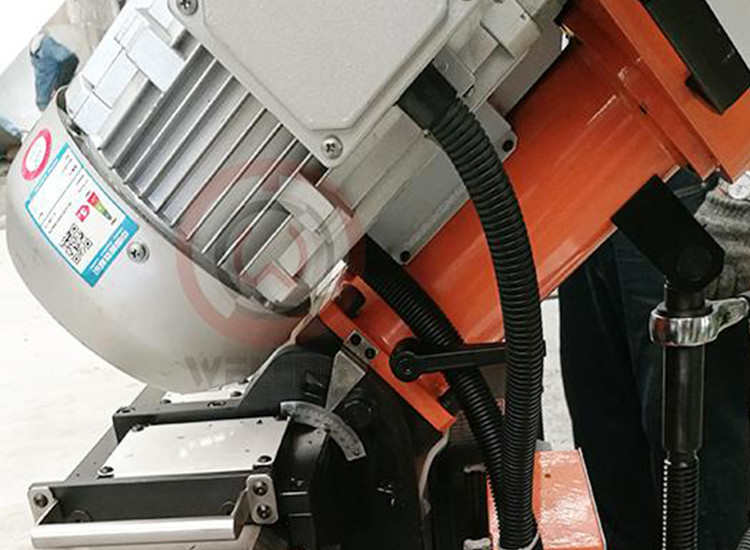

NO.4 Scale table
Refer to the value of the scale table to accurately adjust the angle.
NO.5 High-quality blade, high quality.

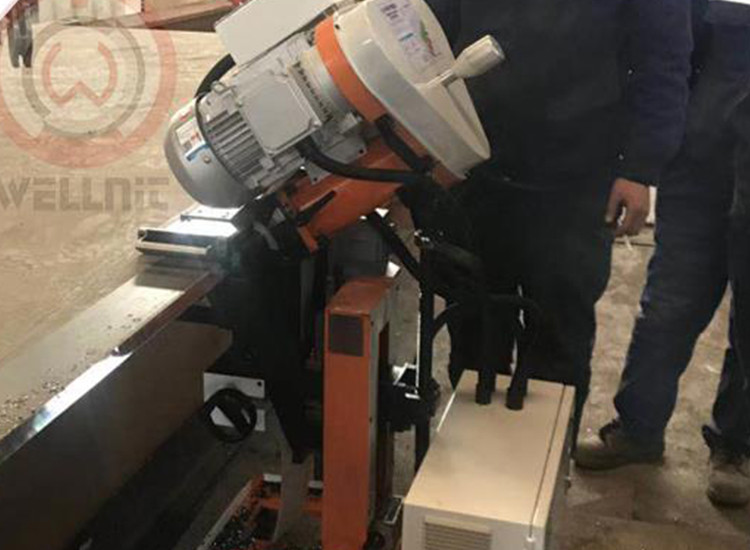

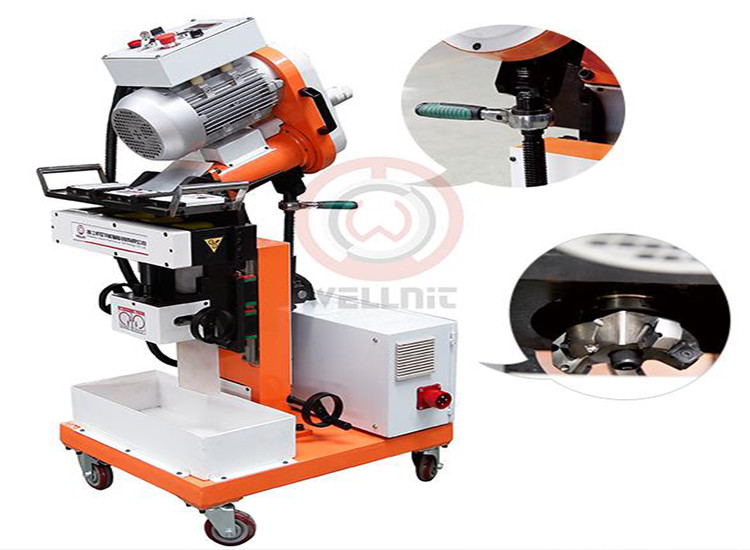

Products Show
