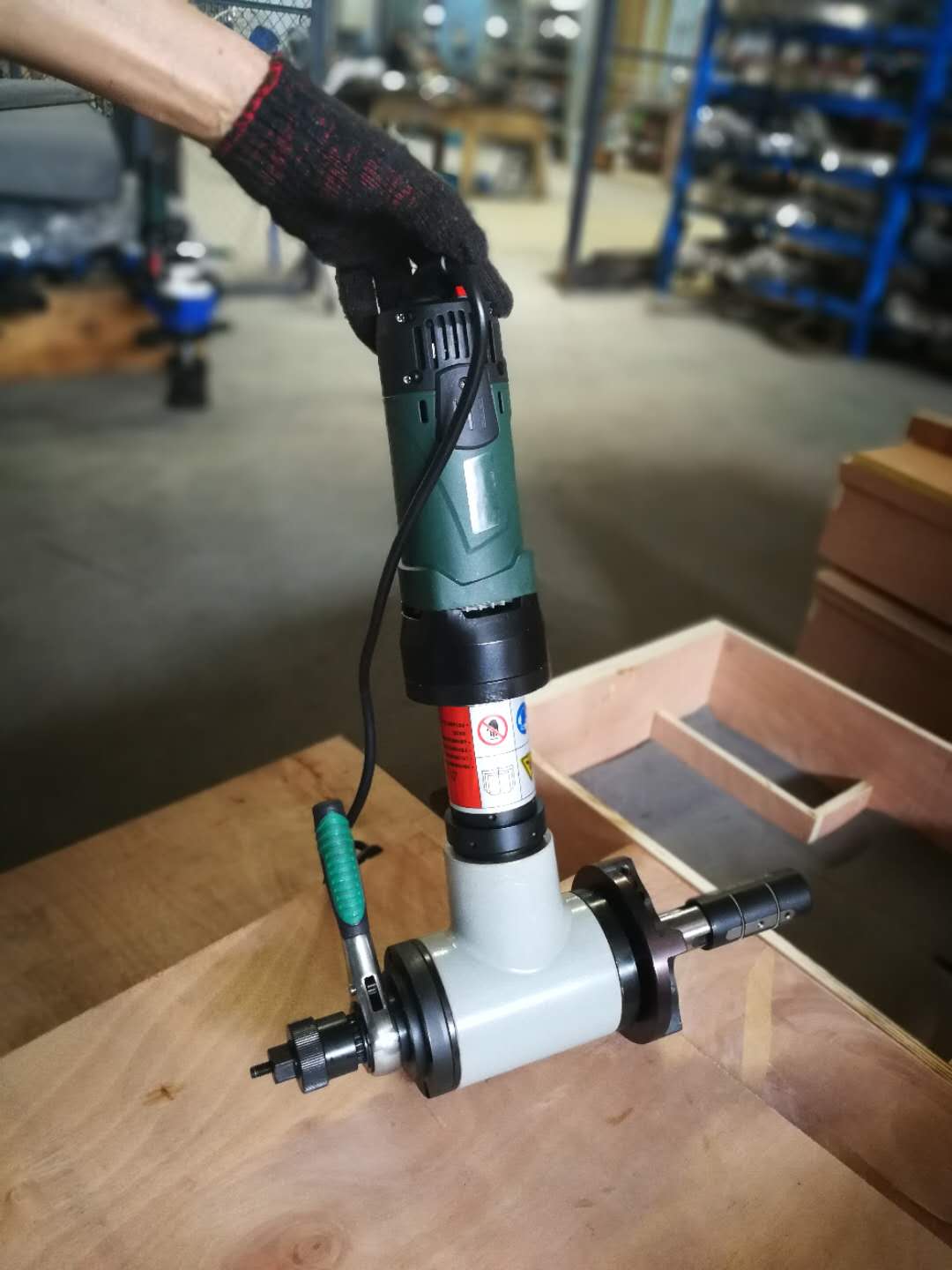

Penumatic Electric Internal Expanding Pipe Beveler , Tube Bevelling Machine Long Life For thick
Production Description
The ID-Mounted beveling operation utilizes an expandable mandrel which is slid into the open end of the pipe.
A draw nut is tightened,
which expands the mandrel blocks up a ramp and against the ID surface for positive mounting,
self centered and squared to the bore. As the tool bit is fed into the material from the end,
a bevel is produced which conforms to the angle predetermined by the angle ground into the bit.
Bits are available for practically any material or beveling angle required,
and bits can be custom made for any form tooling operation.

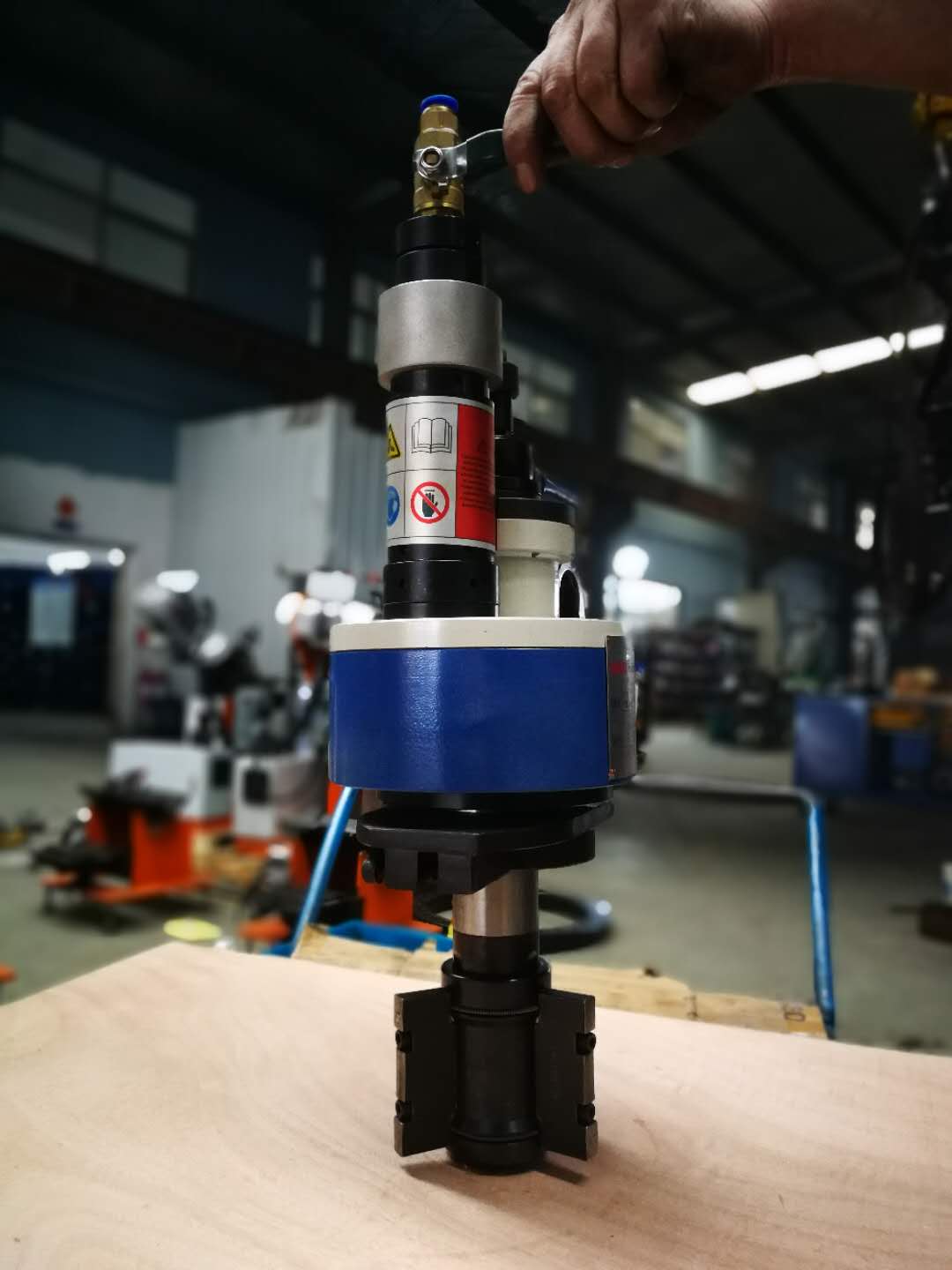

This series is Air Operated Welding Preparation Pipe Beveling Machine have many advantages:
-
On-site cold Beveling improves safety
-
Easy set-up & Operation
-
Self-Centering
-
Can be positioned in any direction
-
Feed ratchet spanner makes tool feed / back easily
-
Light weight and compact design
A draw nut is tighted,which expands the mandrel blocks up a ramp and against the ID surface for positive mounting,self centered and squared to the bore.
Driveing Type:
Electric-ISE,Pneumatic-ISP.
Process Diffferent Material Pipe:
Carbon Steel,Stainless Steel,Alloy And Ohers.
Angle:
Beveling angle as per your required.
Technical Parameter
| ISP/ISE-159 Beveling Machine |
| Voltage | 220-240V |
| Frequency | 50-60Hz |
| Power | 1600W |
| Wall Thickness | ≦15 |
| Working Range | 65-156mm |
| Rotation Speed | 35r/min |
| Net Weight | 65kg
|
Model | Working Range(ID-OD) | Wall Thickness(mm) | Rotation Speed(r/min) |
| ISP/ISE-30 | Φ18-30 | 1/2"-3/4" | ≤15 | 60 |
| ISP/ISE-80 | Φ28-89 | 1"-3" | ≤15 | 55 |
| ISP/ISE-120 | Φ40-120 | 11/4"-4" | ≤15 | 38 |
| ISP/ISE-159 | Φ65-159 | 21/2"-5' | ≤20 | 35 |
| ISP/ISE-252-1 | Φ80-273 | 3"-10" | ≤20 | 16 |
| ISP/ISE-252-2 | Φ80-273 | ≤75 | 16 |
| ISP/ISE-352-1 | Φ150-356 | 6"-14" | ≤20 | 14 |
| ISP/ISE-352-2 | Φ150-356 | ≤75 | 14 |
| ISP/ISE-426-1 | Φ273-426 | 10"-16" | ≤20 | 12 |
| ISP/ISE-426-2 | Φ273-426 | ≤75 | 12 |
| ISP/ISE-630-1 | Φ300-630 | 12"-24" | ≤20 | 10 |
| ISP/ISE-630-2 | Φ300-630 | ≤75 | 10 |
| ISP/ISE-850-1 | Φ490-850 | 24"-34" | ≤20 | 9 |
| ISP/ISE-850-2 | Φ490-850 | ≤75 | 9 |
Non-standard machines are available according to customers’requirement.
Order Guide
Before you place order to us, please let us know the following information:
Choose the right Model
Confirm your electric power supply ( Voltage, frequency and phase)
Confirm the beveling angel required
Confirm the welding joint required (U, V, Double V or Compound preparation)
Advise your pipe material ( Carbon steel, stainless steel or others)
Other special demands about machine
The spare parts needed
If the pipe wall thickness more than 30mm, inform us in advance (Important)

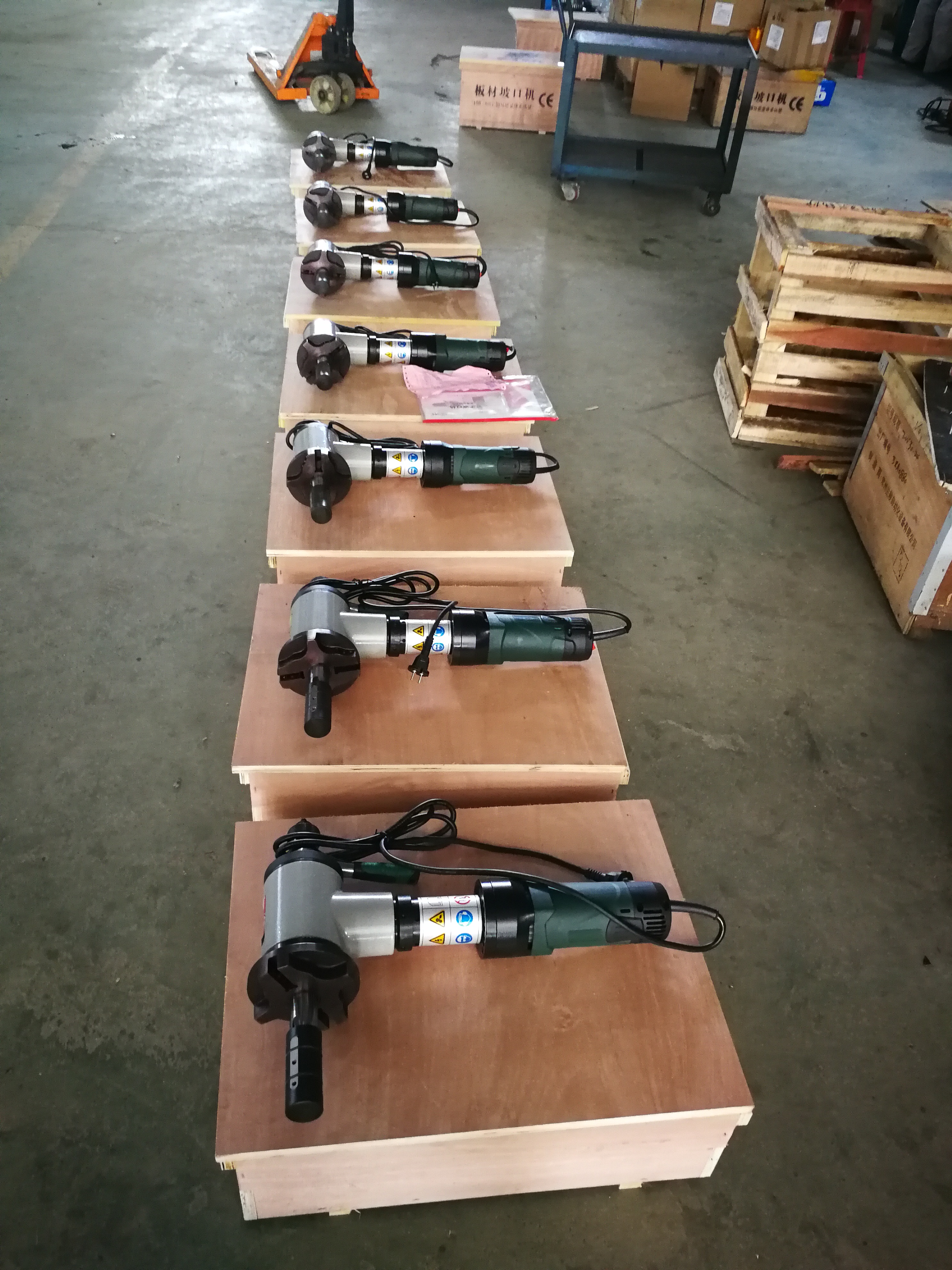

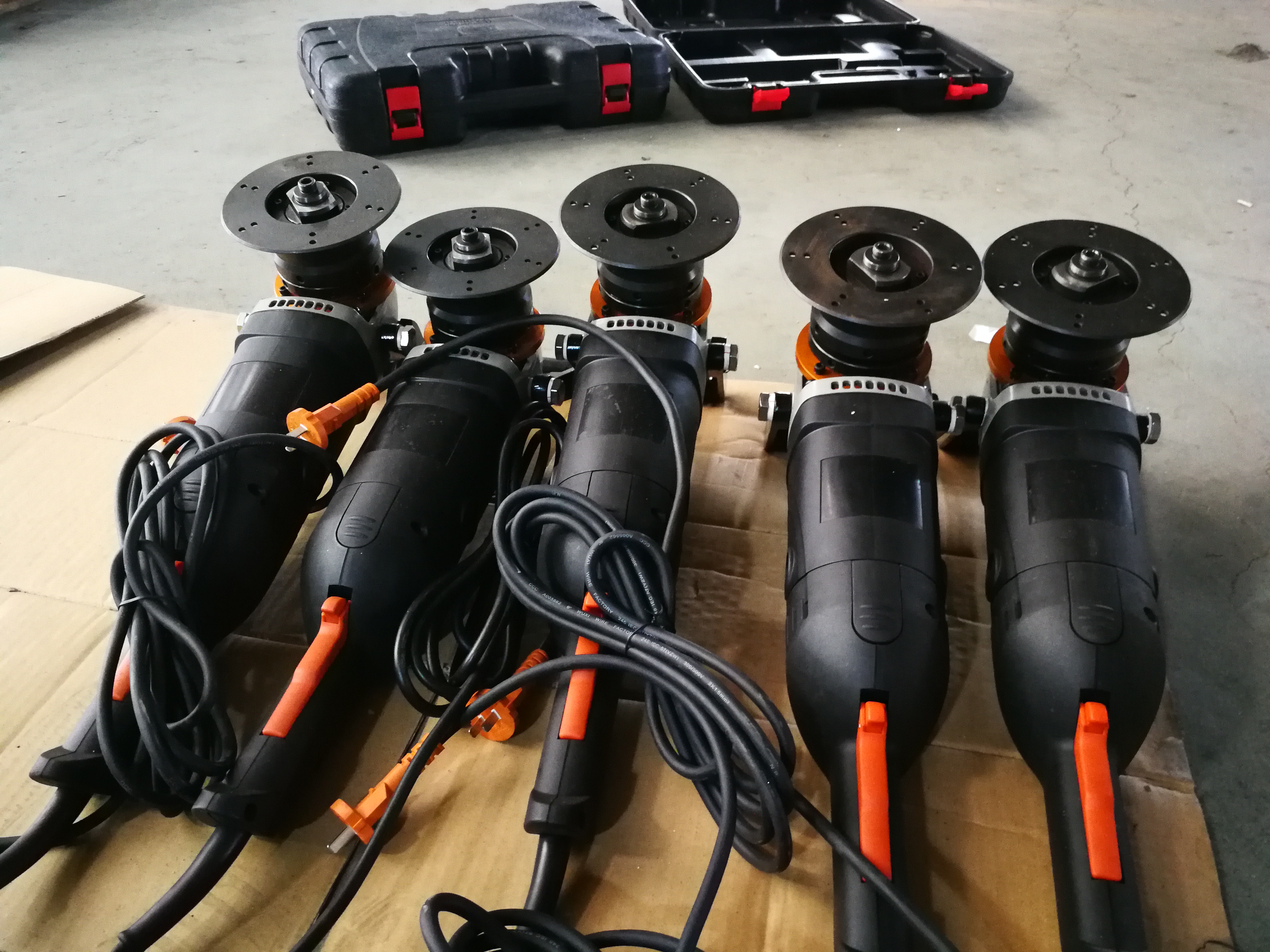

Other Machines in factory:

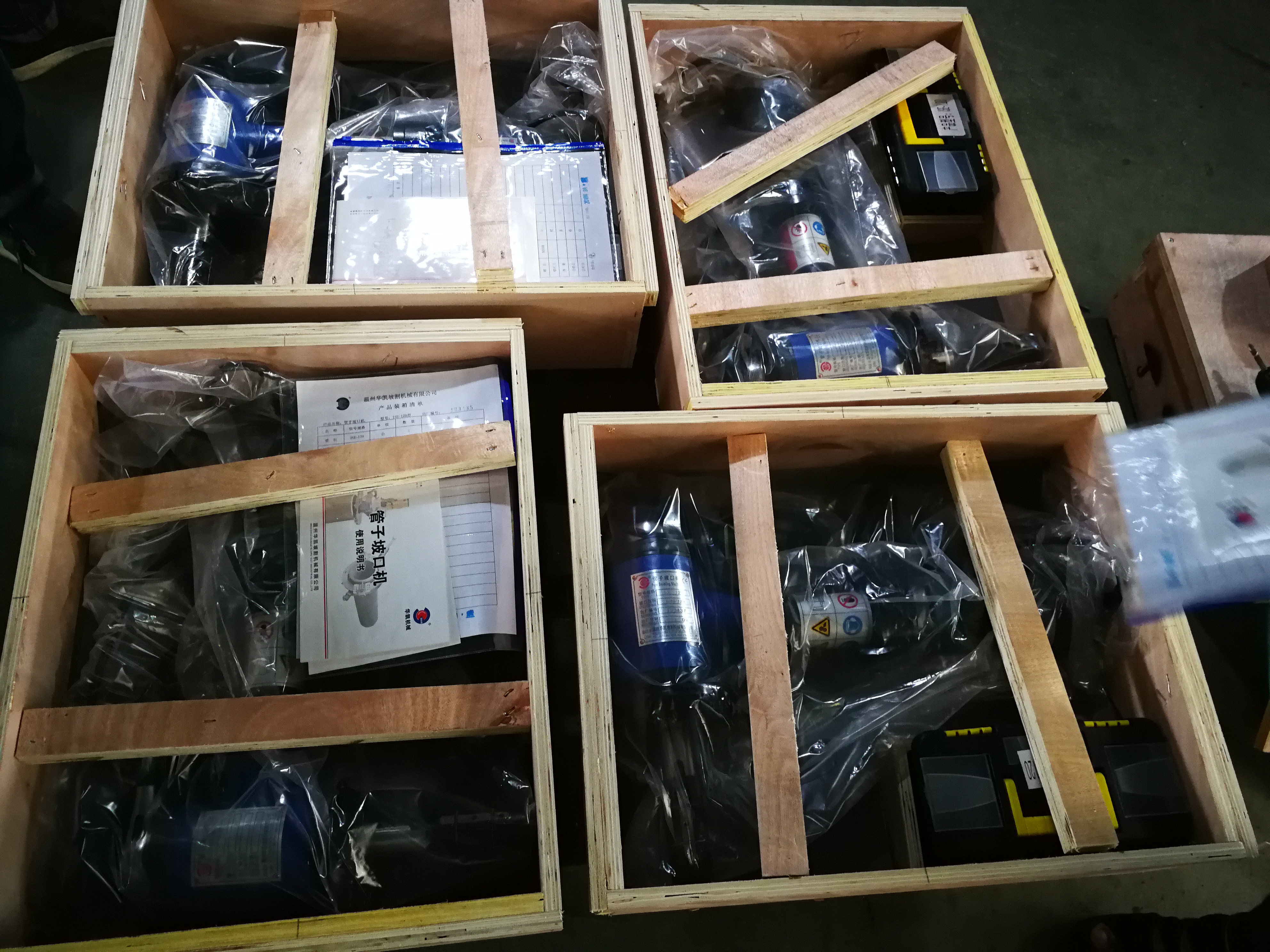

Our packing :
